Oxygen Transmission Rate Testing Instrument for Polymers and Plastic Films
Labthink provide professional oxygen transmission rate testing instrument for polymers and plastic films — OX2/230 Oxygen Transmission Rate Testing Instrument. This Instrument is embedded high oxygen sensor, which can test various polymers with high, low or medium oxygen barrier property.
This Oxygen Transmission Rate Testing Instrument is based on equal pressure method to test oxygen transmission rate of polymers & plastic films.
Standards
ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927， ISO15105-2
Features
- Employed Labthink patent design of three diffusion cells integrated in one instrument for individual or multiple tests
- Can be connected with 9 satellite systems, including Moisture Testing Instruments
- Controlled by Computer with professional software
- Fast and easy to use equipment
- Adjustable temperature and humidity
- Referral films available
Technical Specifications
| Test Range For Polymers & Films | Test Resolution |
| 0.01~65,000cm3/m2/24hrs | 0.001cm3/m2/24hrs |
| Temperature Range | Humidity Range |
| 15ºC~55ºC with Accuracy: +/-0.1ºC | 0%RH, 35%RH~90%RH, 100%RH with accuracy +/-1%RH |
For more info about oxygen transmission rate testing for polymers and plastic films or Labthink OX2/230 Oxygen Transmission Rate Testing Instrument, please contact us.
Related products

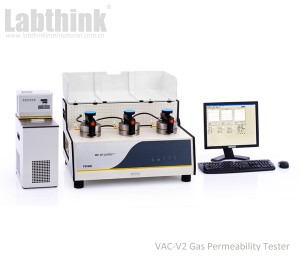

VAC-V2 Gas Permeability Tester (differential Pressure method)
